Technical Passport 는 GOST 2.608-78, GOST 2.105-95, GOST 2.601-2006규격에 맞추어 작성되어야 하며 TRCU인증 취득 시 인증기관에 참고자료로 제출되어야 한다.
Technical Passport 에는 기본적으로 제품의 기본사양, Operation & maintenance 매뉴얼, 인증서, 장비수리일지 등의 내용이 들어가야 한다.
첨부자료 및 기입해야 되는 Technical specification 등은 기기 타입에 따라 다르나 일괄적으로 GOST 규격에 맞추어 작성 되어야 한다.

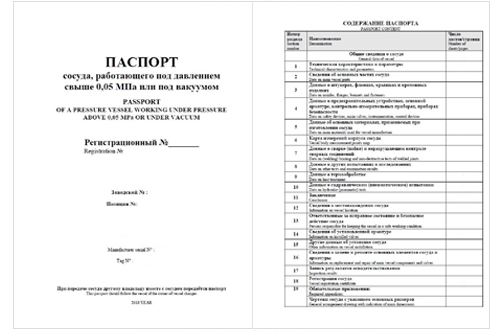

Pressure Vessel 류의Technical Passport 내용(GOST 52630-2012에서 규정)
- General data of vessel
- Data on main vessel parts
- Data on nozzles, flanges, bonnets and fasteners
- Data on safety devices, main valves, instrumentation, control devices
- Data on main materials used for vessel manufacture
- Vessel body measurement points map
- Data on (welding) brazing and non-destructive tests of welded joints
- Data on other tests and examination results
- Data on heat treatment
- Data on hydraulic (pneumatic) tests
- Conclusion
- Information on vessel location
- Persons responsible for keeping the vessel in a safe working condition
- Information on installed valves
- Other information on vessel installation
- Information on replacement and repair of main vessel components and valves
- Inspection results
- Vessel registration certificate
- Required appendices: General arrangement drawing with indication of main dimensions, Vessel strength calculation notes, Operation manual (including Reglament for start (stop) of vessel in the winter time and information of the technical inspection of the vessel), Conservation Certificate
- Additional documentation of manufacturer
- Pressure vessels
- Boilers and steam generators
- Heat exchangers
- Load lifting equipment
- High pressure pipelines
- Burners of various kinds
- Safety and control valves
- Control systems
- Mechanical equipment
- Electrical machinery
- Explosion-proof electrical equipment
- Other potentially hazardous equipment
Technical Passport는 제조자(혹은 작성 대행기관)가 작성하여 제조자 서명 후 사용자와 인증기관에 제출 해야 되는 문서이지만, 러시아어로 작성되어야 하고 작성방법 및 기기에 따른 기입 내용, 첨부 자료 등 제조자가 직접 작성 하는데 어려움이 있기 때문에 아트그룹과 같은 전문 컨설팅 기관의 작성대행을 필요로 한다.

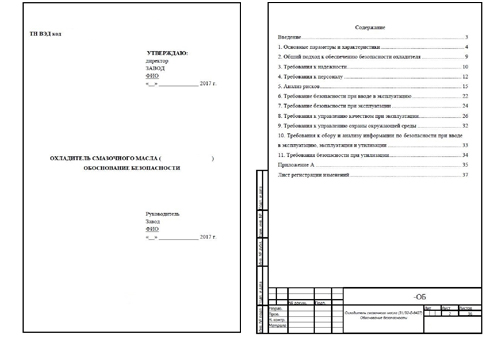

- Introduction
- Basic parameters and characteristics
- General approach to safety provision
- Reliability requirements
- Requirements for personnel
- Risk analysis
- Safety requirements for commissioning and operation
- Quality management requirements when in operation
- Requirements of environmental protection
- Utilization requirements
- Requirements for assembly and analysis of safety information during commissioning, operation and disposal
- safety requirements for disposal
TR CU 010/2011 “On safety of machinery and equipment”와 TR CU 032/2013 “On safety of equipment, which works under pressure”에서 규정하고 있는 기계류 및 설비, 압력용기 및 압력이 있는 제품에 대해서는 TRCU 인증서 발급을 위해 강제적으로 제출되어야 한다.
